500m Distance 850nm VCSEL Laser Illuminator Short Distance Infrared IR Image Featured

500m Distance 850nm Infrared Laser Illuminator Module

> Ho fifala ha otho ka bohlale, Mocheso o bohlale, O ka swappable
> -30 ℃ mocheso o tlase o batang o qala
> VCSEL Laser
> Zoom e amahaneng le khamera e bonahalang ya Savgood
> Hlakola setšoantšo le moeli oa sebaka

POTSO TS'ELISITSOE

Tlhaloso

Boemo

Mohlala	SG-IR850-5M
Sebaka se Atlehang	≥500m
Mokhoa	VCSEL
Wavelength	850±10nm (940nm, 980nm bakeng sa boikhethelo)
Matla a Kena	≤11W
Matla a Laser Chip	2.2±0.3W
Output Light Power	2.0±0.3W
Laser Beam Angle	Angle e Hole 2.0°, Sebaka se Sebetsang>500m, Beam Spot Diameter＜φ18m
Laser Beam Angle	Haufi le Angle 70°, Sebaka se Atlehang>50m
Mokhoa oa ho laola	UART_TTL, RS-485, Manual
Sehokelo sa Puisano	RS-485, TTL232, Taolo ea Bukana
Puisano Protocol	Pelco-D (9600bps Default, 4800bps, 2400bps bakeng sa boikhethelo)
Mokhoa oa ho sebetsa	E tswelapele
Bophelo ba Tšebeletso	> 30000H
Matla a Kena	DC12V±10%, 2.1A±0.2A
Mocheso oa Ts'ebetso	-20°C~+60°C
Mocheso oa polokelo	-40°C~+85°C

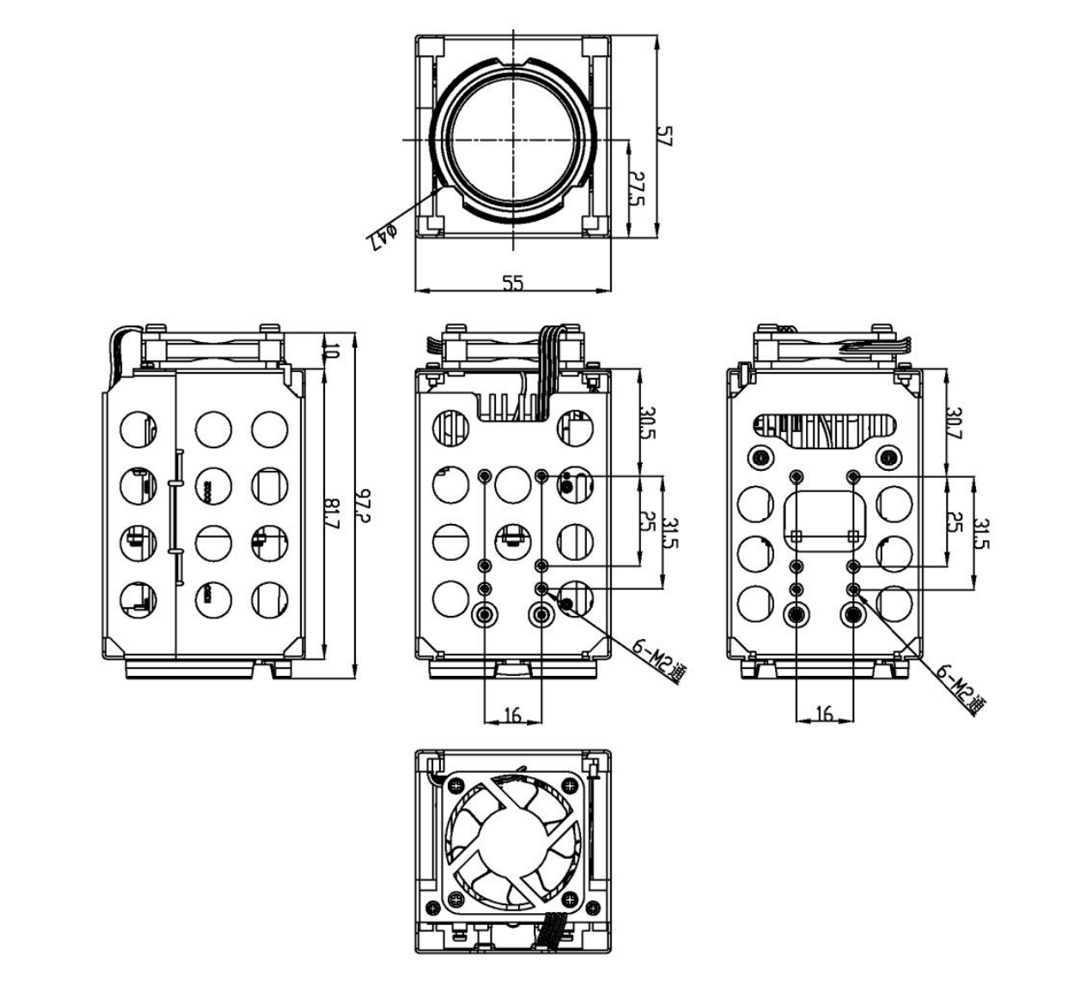

Boemo	97mmx55mmx57mm
Boima ba 'mele	230g
