1280x1024 / 640x51212121 le marang-rang le dijithale tsa dijithale tsa dijithale tsa SHIR
TLHOKOMELISO
Mohlala | SG - SG - SG - SG112nd2 - 17510 | SG - SG - SGUZE6nd2 - 17510 | |
Sensor | Sensor ea setšoantšo | 1/2 "SOY INGAAS STWE STHAFA SWAT SENSOR IMX990 | 1/4 "SONY INGAAS SHAND SCHING IMROR IMX991 |
| Li-pixels tse sebetsang | Approx. 1.344mp | Approx. 0.34mp | |
| Boholo ba Pixel | 5μm | ||
Len | Karabelo ea GoaveLongth | 1000 ~ 1700NM | |
| ICR | Ts'ehetso Mefuta e 2: Band Band: 1000 ~ 1700nmnar Band: 1450 ~ 1700nm | ||
| Bolelele ba 'nete | 17mm ~ 510mm, 30X Zoom Zoom | ||
| Aperture | F2.8 ~ F5.5 | ||
| Tšimo ea pono | H: 21.3 ° ~ 0.71 ° ~ 0.57 ° ~ 0.57 ° ~ 0 | H: 11.6 ° ~ ° ~ 0: 9.3 ° ~ 0.3 °, D: 14.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° ~ 0.47 ° | |
| Haufi le Potso e Kopaneng | 1m ~ 10m 10m (ka bophara ~ Tele) | ||
| Lebelo la zoom | Approx. 7s (Optical Gard ~ Tele) | ||
Video | Compression | H.265 / H.264 / H.264H / MJpeg | |
| Qeto | 25/30/50 / 60fps @ 1280 × 1024 | 25/30/50 / 60fps @ 640 × 512 | |
| Sekhahla sa Video | 32kbps ~ 16bps | ||
| Audio | Aac / mp2l2 | ||
| Video ea LVS | 25/30/50 / 60fps @ 2mp (1920 × 1080) | ||
Netweke | Polokelo | Karete ea tf (256 GB), FTP, NAS | |
| Nete ea marang-rang | ONVIF, http, https, ipv4, RTP, RTSS, RTR, TCP, udp | ||
| Multicast | Ts'ehetso | ||
| Ntlafatso ea Firmware (LVDS) | Feela e ka ntlafatsa firmware ka port ea netweke | ||
| Liketsahalo tse akaretsang | Motion, tamper, karete ea SD, marang-rang | ||
| Li-IV | Tribire, ho tšela temo e tenang, ho kenella, ho ts'oaroa ha ntho e lahliloeng, ho bokella khakanyo, ho lemoha ha moeli o sieo, ho a lemoha ho haellang. | ||
| Phokotso ea lerata | 2D / 3D | ||
| Mokhoa oa ho pepeseha | Managual, Auto, e ka pele ea ATRinture e tlang pele, e ntle pele | ||
| Puseletso ea ho pepeseha | Ts'ehetso | ||
| Lebelo la shutter | 1/1 ~ 1 / 30000s | ||
| Mokhoa oa ho tsepamisa maikutlo | Auto / Thuso / Semi Auto | ||
| Declec Defog | Ts'ehetso | ||
| Heat Haze Phokotso | Ts'ehetso | ||
| Flip | Ts'ehetso | ||
| Eis | Ts'ehetso | ||
| Digital Zoom | 16x | ||
| TLHOKOMELISO E TSOANG PELE | Ttl | ||
| Semmuso | 4pin ethernet port, 6pin serial & Power Port, 5pin Audio Port.com30pin lvds | ||
| Protocol Protocol | Sony Visca, Pleco D / P | ||
| Maemo a Sebetsa | - 30 ~ + 60 ° C / 20% ~ 80% RH | ||
| Maemo a polokelo | - 40 ~ + 70 ° C / 20% ~ 95% RH | ||
| Phepelo ea motlakase | DC 12V | ||
| Tšebeliso ea Matla (TBD) | Avg: 6w; Max: 11w | ||

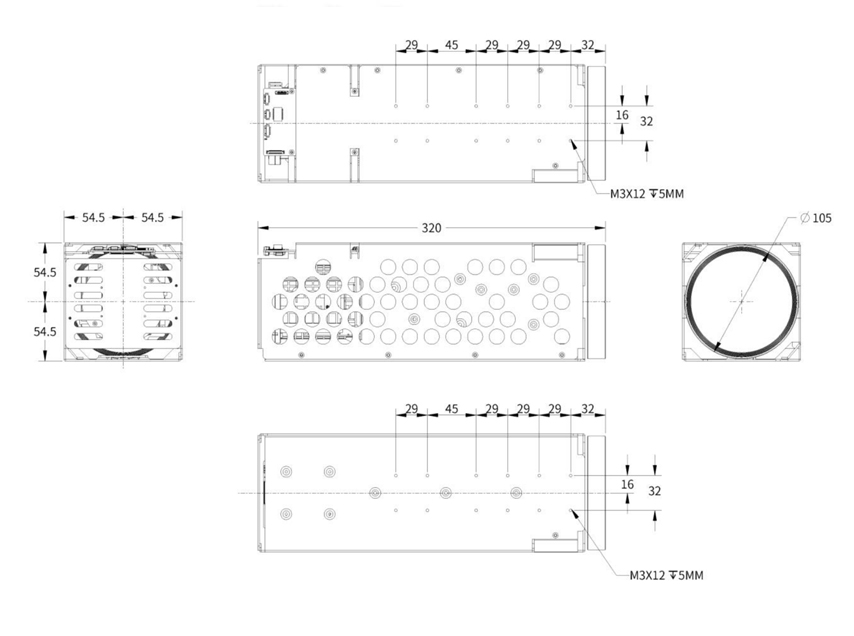

| Boholo (L * w * h) | Approx. 320MM * 109mm * 109mm | ||
| Boima | 3.1kg | ||
Sesebelisoa sa marang-rang
| Mofuta | Nomoro ea PIN | Lebitso la Pino | Tlhaloso |
| Lenaneo la Ethernet Ethernet | 1 | Ethrx - | Adaptive mattive ethernet Port, Inthanete RX - |
| 2 | Ethrx + | Amoptive Ethernet Boeutt, Interne RX + | |
| 3 | EthTx - | Adaptive matchetjhat mart, marang-rang TX - | |
| 4 | + | Amoptive Ethernet Boeutt, Internet TX + | |
| J3_6PIn Power & Uart Interface | 1 | Dc_in | DC12VV |
| 2 | Gnd | Gnd | |
| 3 | Rxd1 | Boemo ba TTL 3.3V, POLCO Protocol | |
| 4 | Txd1 | Boemo ba TTL 3.3V, POLCO Protocol | |
| 5 | Rxd0 | TTL boemo ba 33V, Visca protocol | |
| 6 | Txd0 | TTL boemo ba 33V, Visca protocol | |
| J1_5Pin Audio In Audio | 1 | Audio_out | Audio kantle (line) |
| 2 | Gnd | Gnd | |
| 3 | Audio_in | Audio in (mohala ho) | |
| 4 | Gnd | Gnd | |
| 5 | NC | NC |
Khokahano ea LVDS
| Kou | Palo | Lebitso la Pino | Tlhaloso |
| J4_30pin Lvds, (joalo ka Sony 30pn Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Gnd | Gnd | |
| 10 | Gnd | ||
| 11 | Gnd | ||
| 12 | Gnd | ||
| 13 | DC | DC Out (DC + 7V * 12v) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | Uarch1_tx | TTL boemo ba TTL 3.3V, Visca Protocol, e ts'oanang ho TXD0 ho J3_6PIN Port. Empa ha e khone ho hokahanya ka nako e le 'ngoe. | |
| 19 | Uarch1_rx | TTL boemo ba TTL 3.3V, Visca Protocol, e ts'oanang ho Rxd0 ho J3_6PIN Port. Empa ha e khone ho hokahanya ka nako e le 'ngoe. | |
| 20 | Gnd | Gnd | |
| 21 | TXOT0 - | ||
| 22 | Txout0 + | ||
| 23 | TXOT1 - | ||
| 24 | Txout1 + | ||
| 25 | TXOT2 - | ||
| 26 | Txout2 + | ||
| 27 | TXOTCLK - | ||
| 28 | +Keka | ||
| 29 | TXOT3 - | ||
| 30 | Txout3 + |
