5MP 60x AI ISP Based Ultra Long Range Zoom Starlight Global Shutter Network le MIPI Dual Output Camera Module
|
Mohlala |
SG-ZCM5060NMI-OG |
||||
|
Sensoro |
Sensor sa setšoantšo |
1/1.8 "StarvisGlobal Shutter Sensor ea CMOS. |
|||
|
Lipikselse tse Sebetsang |
Hoo e ka bang. 5.10 megapixels |
||||
|
Lense |
Bolelele ba Tsepamiso |
20mm ~ 1200mm, 60x Optical Zoom |
|||
|
Sekoti |
F2.92~F11.37 |
||||
|
Sebaka sa Pono |
H :04 ° ~ 0.32 ° ~,397 ° ~ 0.27 ° ~ 0.27 ° (D: 24.67 ° ~ 0.42 ° |
||||
|
Koala Bohole ba Tsepamiso |
1m~50m (Wide~Tele) |
||||
|
Atometsa Lebelo |
< 10s (Optical Wide~Tele) |
||||
|
DORI Distance (Motho) |
Lemoha |
Ela hloko |
Lemoha |
Tseba |
|
|
17,532m |
6,957m |
3,506m |
1,753m |
||
|
Video |
Khatello |
H.265/H.264B/H.264M/H.264.H/MJPEG |
|||
|
Bokhoni ba ho phallela |
3 melapo |
||||
|
Qeto |
Sekolo sa mantlha: 50 / 60fps @ 2448 × 2048; 50 / 60fps @ 2688 × 1520; 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720 Sub tonab1: 50 / 60fps @ 704 × 576; 50 / 60fps @ 352 × 288; Sub Torna2: 50 / 60fps @ 1920 × 1280; 50 / 60fps @ 1280 × 720; 50 / 60fps @ 704 × 576 |
||||
|
Audio |
AAC(8/16kHz) / MP2L2(16kHz) |
||||
|
MIPI Video |
50hz: 50fps @ 4mp (2688 × 1520) 60hz: 60fps @ 4mp (2688 × 1520) |
||||
|
Marang-rang |
Network Protocol |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour |
|||
|
API |
ONVIF, HTTP API, SDK, GB28181 |
||||
|
Sebatli sa Marang-rang |
IE, Edge, Firefox, Chrome |
||||
|
Mosebedisi |
Ho fihla ho basebelisi ba 20, boemo ba 2: Motsamaisi, Mosebelisi |
||||
|
Polokelo |
Karete ea Micro SD/SDHC/SDXC (Ho fihla ho 1TB) polokelo ea moeli, FTP, NAS |
||||
|
Multicast |
Tšehetso |
||||
|
Ntlafatso ea Firmware |
Ke feela e ka ntlafatsang firmware ka Network port. |
||||
|
Liketsahalo tse Akaretsang |
Motion, Tamper, SD Card, Network |
||||
|
IVS |
Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Ho Tsamaea, Ho Tseba Maemelo, Khakanyo ea Pokello ea Matšoele, Ntho e Sieo, Ho Tseba ho Loitering. |
||||
|
Phapang ea Sepheo |
Motho/Koloi |
||||
|
Karolelano ea S/N |
≥55db |
||||
|
Bonyane Bonyane |
Mmala: 0.05Lux/F2.92; B/W: 0.005Lux/F2.92 |
||||
|
Phokotso ea Lerata |
2D/3D/AI Phokotso ea Lerata |
||||
|
Boemo ba Exposure |
Auto, Aperture Priority, Shutter Priority, Fumana Pele ho Pele, Bukana |
||||
|
Hlahisa Puseletso |
Tšehetso |
||||
|
Lebelo la Shutter |
1/1 ~ 1/30000s |
||||
|
BLC |
Tšehetso |
||||
|
HLC |
Tšehetso |
||||
|
WDR |
Tšehetso |
||||
|
White Balance |
Auto, Manual, Indoor, Outdoor, ATW, Sodium lamp, Street lamp, Natural, One Push |
||||
|
Motšehare/Bosiu |
ICR(Auto/Manual) |
||||
|
Mokhoa oa ho tsepamisa maikutlo |
Auto, Manual, Semi Auto, One Push AF |
||||
|
Defog ea elektroniki |
Tšehetso |
||||
|
Optical Defog |
Tšehetso, mocha oa 750nm ~ 1100nm ke Optical Defog |
||||
|
Phokotso ea Mofuthu oa Mocheso |
Tšehetso |
||||
|
Fenya |
Tšehetso |
||||
|
EIS |
Tšehetso |
||||
|
Digital Zoom |
16x |
||||
|
Taolo ea Kantle |
2x TTL; E lumellana le SONY VISCA le Pelco Protocol |
||||
|
Sehokedi |
4pin Ethernet port, 6pin Power & UART port, 5pin Audio port, 30pin MIPI |
||||
|
Phatlalatso Protocol |
SONY VISCA, Pelco D/P |
||||
|
Maemo a Tshebetso |
- 30 ° C ~ + 60 ° C / 20% ho 80% RH |
||||
|
Maemo a polokelo |
- 40 ° C ~ + 70 ° C / 20% ho 95% RH |
||||
|
Phepelo ea motlakase |
DC 12V |
||||
|
Tšebeliso ea Matla |
Matla a tsitsitseng: 5W, Matla a lipapali: 10W |
||||
|

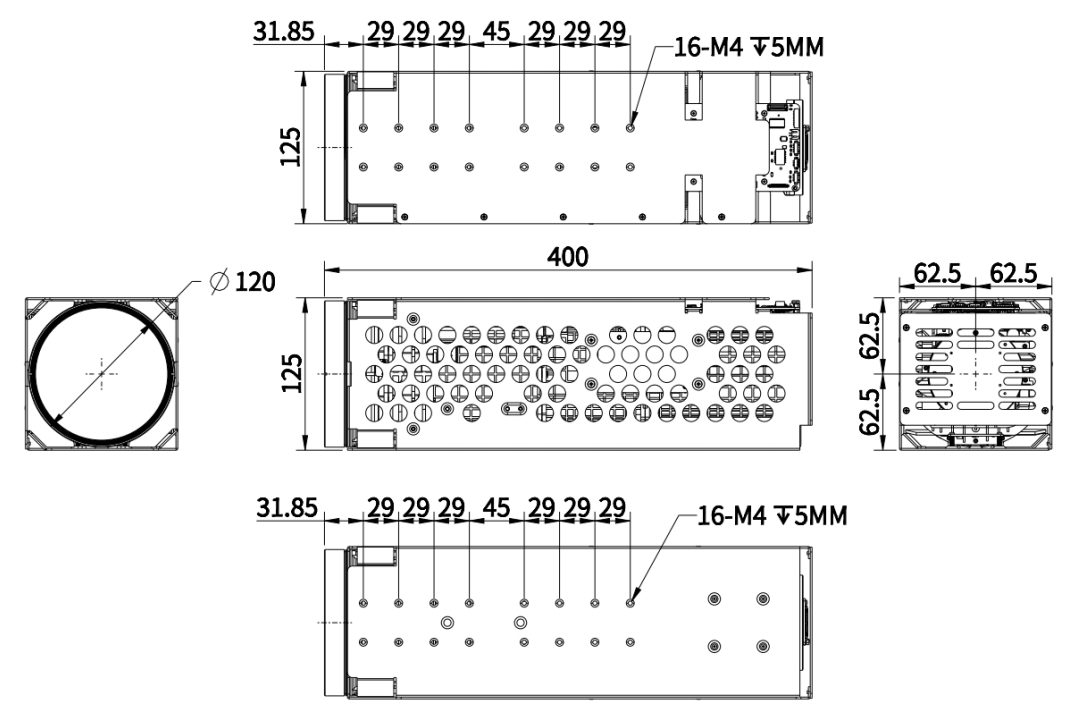

Litekanyo(L*W*H) |
400mm * 125mm * 125mm |
||||
|
Boima ba 'mele |
Hoo e ka bang. 5kg |
||||
